XGA Resolution
Displaying clear and crisp visuals thanks to its XGA resolution, the Epson EB-E12's high resolution is able to support vivid display on large screen sizes.
Easy Maintenance and Longer Lamp Life
A long lamp life reduces maintenance and costs. The lamp will last up to 12,000 hours in ECO mode. Cut down on the frequency of lamp replacements, saving you time and money, and lowering the total cost of ownership.
Various Interfaces
Epson business projectors support a wide range of connectivity options. Works with various HDMI capable equipments.
Flexible Display Size
Why settle for smaller screen when you can have more 120" and even up to 300"? EB-E12 supports a variety of aspect ratio and display size up to 300" diagonal.
Split Screen Capability
Use the projector to show 2 different images from 2 different devices at the same time using the split screen function. Example, you can now show your presentation on one side while seeing the video on another side.
Projection Technology:
Projection Technology:RGB liquid crystal shutter projection system (3LCD)
Brightness1:
White Light Output (Normal/Eco):3,600 lm / 2,200 lmColour Light Output:3,600 lmLight Output (Center)*2:3,700 lm

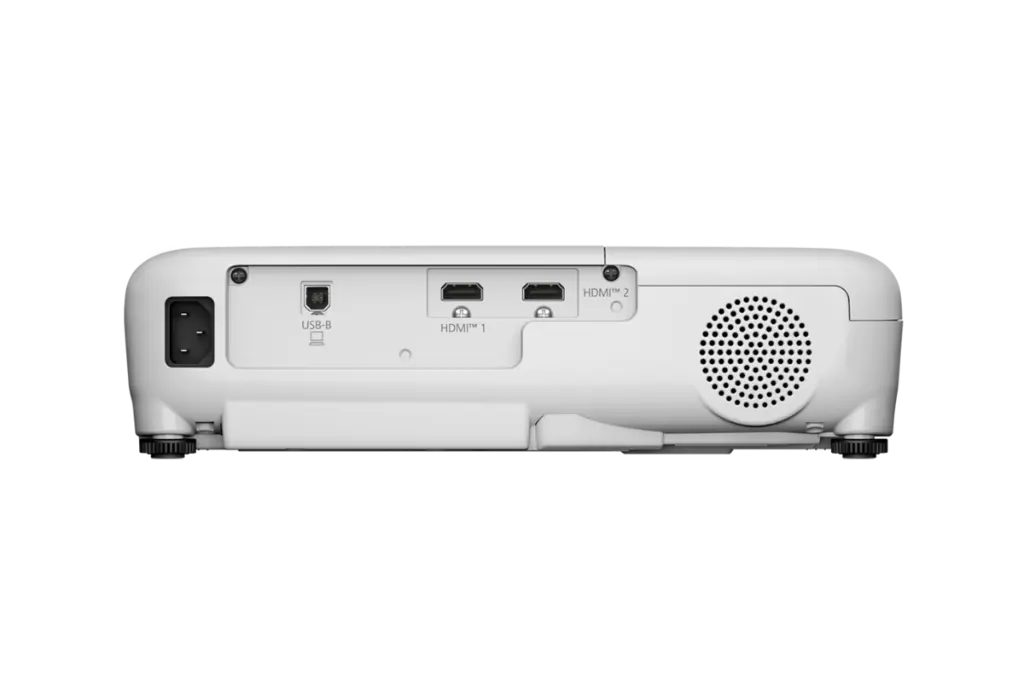

Connectivity:
Network:NAAnalog Input:D-Sub 15pin : N/A
RCA : N/ADigital Input:HDMI Type A : 2 (HDCP 1.4)Analog Output:D-Sub 15pin : N/AAudio Input:Stereo Mini : N/AAudio Output:Stereo Mini : N/AControl I/O:RS-232C : N/AUSB Input:USB Type B : 1 (For Firmware Update, Copy OSD Settings)
Contrast Ratio:
Contrast Ratio:15,000:1
Screen Size (Projected Distance):
Zoom : Wide:30” – 350” [0.87 – 10.34 m]Zoom : Tele:15” – 175” [0.87 - 10.34 m]
Geometric Correction:
Vertical/Horizontal Keystone:±30° / ±30°
Operating Temperature:
Operating Temperature:Low Altitude (0 - 2,286m/7,500ft): 5 - 40 °C <41 - 104 °F>
High Altitude (Over 2,286m/7,500ft): 5 - 35 °C <41 - 95°F>
20% - 80% Humidity, No Condensation
Operating Altitude:
Operating Altitude:Over 1,500m/4,921ft with High Altitude Mode: 0 - 3,048m (0 -10,000ft)
Start-Up Period:
Start-Up Period:Less than 7 seconds (Epson Logo); Warm-up Period: 30 seconds
Cool Down Period:
Cool Down Period:Instant Off
Internal Speaker(s):
Sound Output:Monaural 2W x 1
Weight:
Weight:Approx. 2.4kg
Air Filter:
Maintenance Cycle*3:6,000 hours (Normal) / 12,000 hours (Eco)
Fan Noise:
Fan Noise (Normal / Eco):37dB / 28dB
Power Consumption (220-240V):
Lamp (Normal / Extended):Normal : 332 W
Extended : 231 WStandby (Normal / Eco) :N/A / 0.3 W
Direct Power On / Off:
Direct Power On / Off:Yes
Dimension Excluding Feet:
Dimension Excluding Feet (W x D x H):302 x 234 x 77 mm
Power Supply:
Power Supply Voltage:100 - 240 V AC ±10%, 50/60 Hz
Specifications of Main Parts:
LCD:Size : 0.55” (C2 Fine)
Driving Method : Poly-silicon TFT active matrix
Pixel Number : 786,432 dots (1024 x 768) x 3
Native Resolution : XGA
Aspect Ratio : 4:3
Pixel Arrangement : Cross stripeLight Source:Lamp Type : 210 W UHE
Life (Normal / Eco) 6,000 hours / 12,000 hoursProjection Lens:Type : No Optical Zoom / Focus (Manual)
F-Number : 1.44
Focal Length : 16.7 mm
Zoom Ratio : 1.0 - 2.0 (Digital Zoom)
Throw Ratio : 1.44 – 2.88
